New and Used Flooring

FlooringData-Tec Systems offers both new and used panels for raised floor systems.

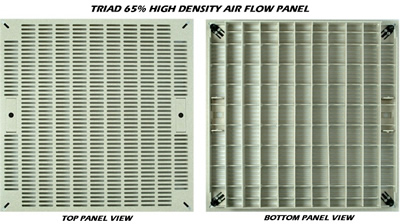

Triad 65% Airflow Tiles

TriadTriad's 65% high density airflow panels are designed to provide optimal data center and server farm hot spot cooling for any raised floor systems. These panels are built to provide 1500 to 3000 lbs. of concentrated load capacities for raised floors with a maximum stringer width of 1.75". They are easily adjusted with the patent pending corner adapters to flush mount to almost any new or existing raised floor system regardless of age. The patent pending Integrated Dual Handles provide safe, balanced lifting and placement of panel without the need for suction cup lifters. Triad's Hi-Plume Stratification Fin provides increased upper server cooling dropping upper/middle/lower server temperatures 5-15 degrees while quickly lowering energy consumption.

PDF download product brochure

KoldLok® Raised Floor Grommets

KoldLokKoldLok® products optimize the effectiveness of your existing cooling equipment and manage the increasing heat loads. The patented KoldLok® sealing system specifically addresses bypass airflow and its detrimental effects on data center cooling efficiency, equipment hot spots and infrastructure costs.

KoldLokCost-effective benefits of KoldLok® Grommets: Increases existing cooling unit capacity • Reduces the need to purchase additional cooling units • Improves equipment reliability and extends equipment life • Increases static pressure under the raised floor and improves cool air delivery through perforated tiles or floor grates • Facilitates Cold Aisle/Hot Aisle best practices

Tile Lifter Tools

Lifter ToolWe offer a variety of tile lifter tools including the standard suction cup panel pullers and special tools for lifting perforated panels.

Lifter Brac® Tile Lifter Tool Stations

Lifter-BracThese highly visible wall-mounted stations ensure that a lifter tool is easy to locate when you need one.

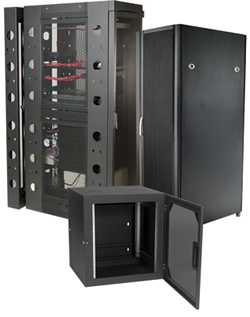

Server Cabinets by NER Data Products

NERData-Tec Systems offers NER's comprehensive line of server cabinets, equipment racks and enclosures suitable for many applications in the data center. Also available is a full line of cabinet accessory products including a wide variety of cable management styles, shelves, caster kits, side panels, blanking panels, electronic and combination locks, grounding kits, blower kits, rack-based power distribution, and access, control, and monitoring technologies.

Server Cabinet features include: Fully assembled 42U multi-vendor compatible frame • 24" width designed to line up with raised floor tiles • 36" and 42" available depths • 2 sets of EIA-310 square-hole rails with silkscreen U markings • 2600 lb static load tested • Designed to accept high density server deployments • Rounded mesh front door with unique hexagon mesh design allows 80% free air-flow • Split mesh rear doors with 3-point latch and 80% free air flow • Quick release mesh top panel • Standard center-hinged lockable and removable side panels • Built-in cable management and pass-through ports in frame structure • Variety of add-on cable management and power distribution available • TIA-942 compliant grounding lugs in frame • Levelers and casters • Durable black finish
